APPLICATIONS

Level / depth and water quality in tanks for liquids

Groundwater and wells

Running or open water level and quality

Salinity and chloride monitoring



SENSORS

LEVEL / PRESSURE
Range: 0 … 10 mH₂O / 0 … 1 bar, relative
Resolution: 2mm
Accuracy: ±0.5% of full scale @ 20 °C

TEMPERATURE
Range: -11 ... +49 °C, do not expose to freezing temperatures if sensor is in water
Resolution: 0.1 °C
Accuracy: max. ±1 °C

ELECTRICAL CONDUCTIVITY
Range: 0 … 120 dS/m
Resolution: 0.001 dS/m
Accuracy: ±0.01 dS/m or ±10% (whichever is greater)

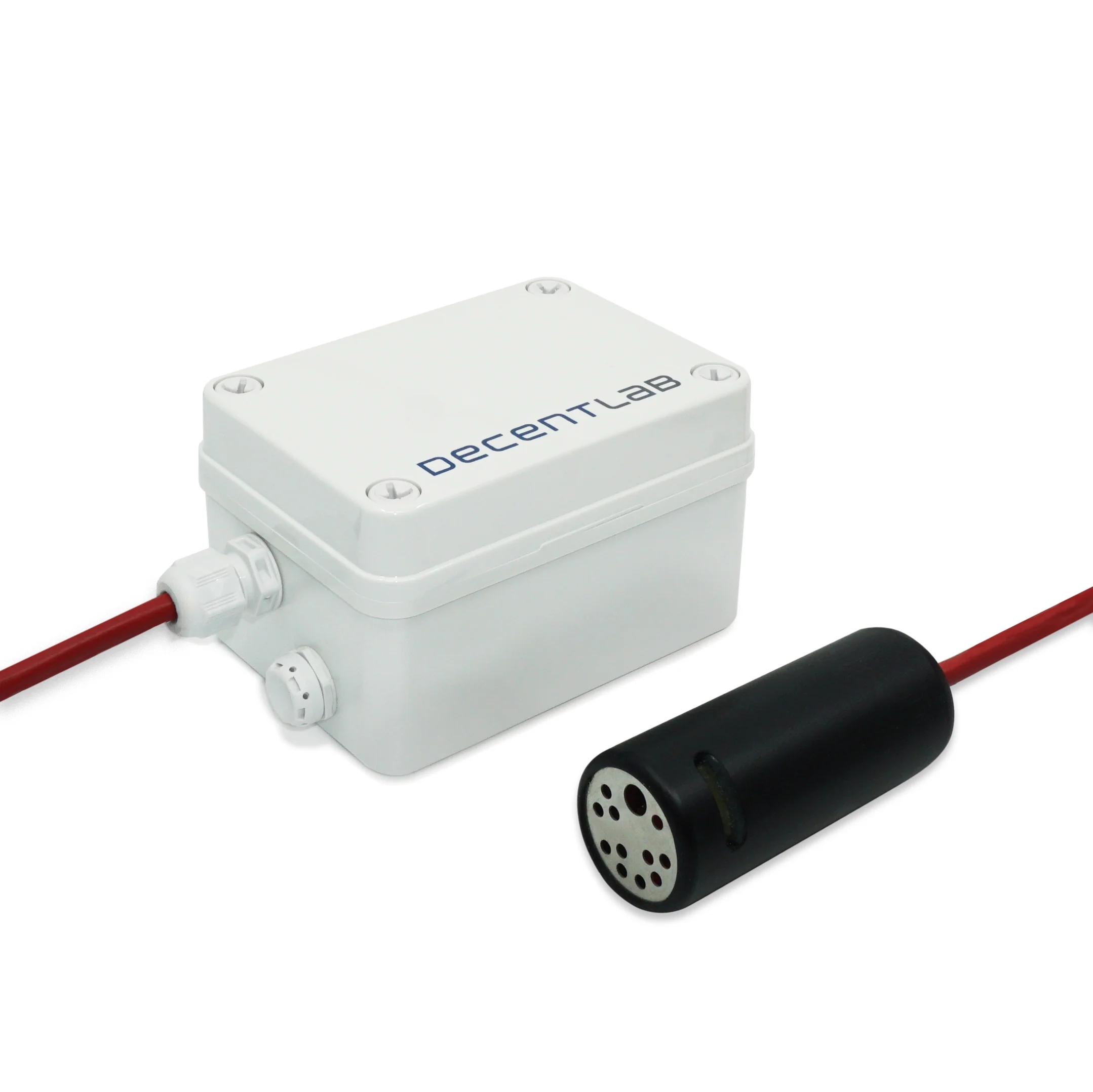

DEVICE

LoRaWAN™ class A

2 C alkaline batteries

13.5 cm × 8.1 cm × 7 cm (not including sensor / cable)

10 m cable

Reference DL-CTD10
